Metal scaffold decking roll forming machine

How do you ensure the precision of a metal scaffold decking roll forming machine?

Ensuring the precision of a metal scaffold decking roll forming machine is a crucial factor in the manufacturing process, as it directly impacts the quality of the finished product and the overall efficiency of the production line. Precision in a roll forming machine ensures that the final product meets the required dimensions and tolerances, minimizes material waste, and maximizes productivity.

1. Machine Design and Component Selection

The design and selection of components play an essential role in ensuring the precision of a metal scaffold decking roll forming machine. High-quality materials and precision-engineered components are critical for the consistent performance of the machine. Some of the key factors that affect precision include:

Shaft and Rollers

The diameter of the shaft, which typically ranges from 70 to 80 mm, directly influences the accuracy of the roll forming process. Larger shafts tend to reduce deflection during operation, providing better stability and uniformity in the formed product. The rollers, which are the main tool for shaping the metal, should be precisely manufactured to ensure accurate profiling and consistent pressure distribution.

Alignment of Components

Proper alignment of the rollers, shafts, and other key components is vital for achieving uniformity and precision. Even minor misalignments can result in dimensional variations in the finished products. Shanghai Sihua Precision Machinery Co., Ltd. ensures that its metal scaffold decking roll forming machines are designed with advanced alignment mechanisms that guarantee minimal deviations.

2. Advanced Control Systems

A key factor in achieving precise results in the metal scaffold decking roll forming machine is the implementation of advanced control systems. Modern machines come equipped with programmable logic controllers (PLC) and human-machine interface (HMI) systems that allow operators to monitor and adjust various parameters during the manufacturing process. These control systems help to fine-tune the machine’s settings in real time to maintain optimal performance.

Automatic Adjustments

Some advanced systems enable automatic adjustments to factors like speed, temperature, and pressure, ensuring that the metal sheet is formed consistently throughout the entire process. These automated adjustments reduce the risk of human error and contribute to the overall precision of the machine.

Feedback Loops

Incorporating feedback loops into the system, such as sensors that measure the product’s dimensions in real time, helps to correct any potential errors before they affect the entire batch. This real-time feedback allows the operator to make corrective actions instantly, ensuring that the final product adheres to strict specifications.

3. Material Quality and Specifications

The type of material being processed has a significant impact on the precision of the metal scaffold decking roll forming machine. The standard thickness range for metal scaffold decking used in these machines is between 1 and 2.5 mm. Consistency in material thickness and uniformity across the entire sheet are essential for maintaining precision throughout the roll forming process.

Material Consistency

The quality and consistency of the metal, whether it is steel, aluminum, or another alloy, directly influence the final dimensions of the formed product. Variations in the material properties can lead to uneven shaping, which will impact the quality and structural integrity of the decking. Manufacturers like Shanghai Sihua Precision Machinery Co., Ltd. ensure that their machines are designed to handle a wide range of materials with consistent results.

Temperature Control

Material temperature can also affect the forming process. While metal scaffold decking roll forming machines typically operate with cold-formed materials, maintaining an optimal working temperature during the process can prevent distortion or warping, ensuring precision.

4. Roll Forming Process and Tooling

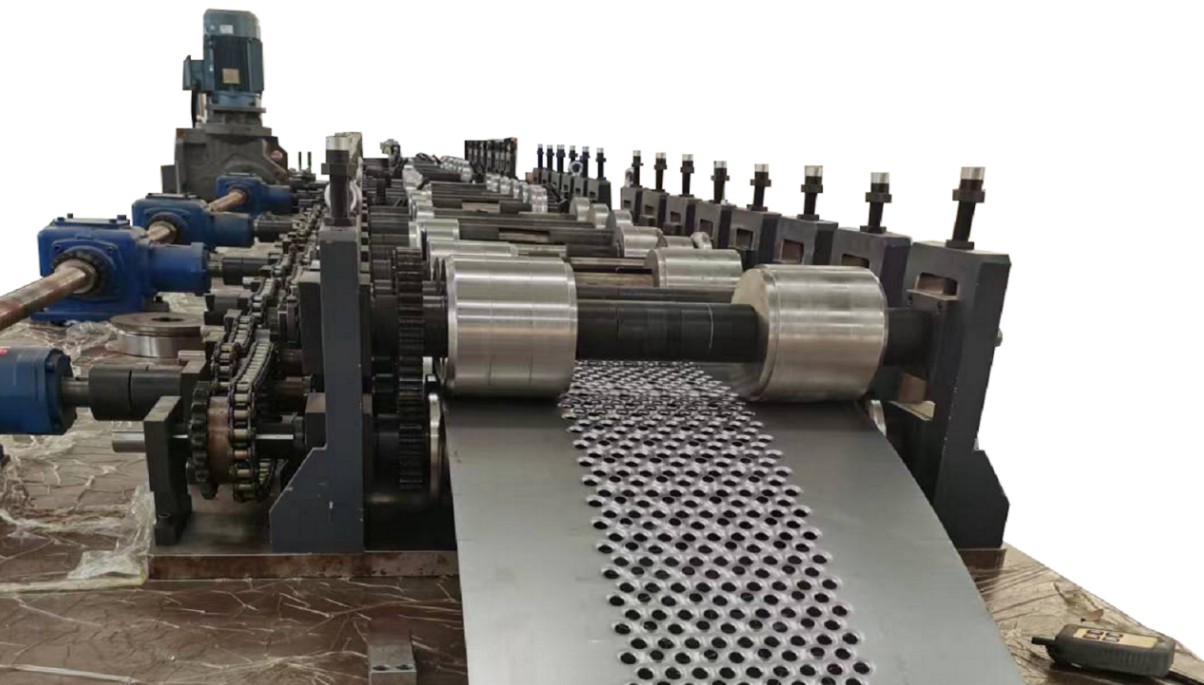

The roll forming process itself is a critical aspect of ensuring precision. The metal scaffold decking roll forming machine uses a series of rollers and molds to progressively shape the material into the desired profile. The accuracy of this process depends on the following:

Roller Configuration and Tooling

The arrangement of the rollers and the design of the tooling (such as molds and punches) are key to achieving precise shapes. Custom-designed tooling, such as those developed by Shanghai Sihua Precision Machinery Co., Ltd., ensures that the metal scaffold decking roll forming machine produces the correct dimensions and surface finish for each metal sheet.

Roller Setup and Calibration

Proper setup and calibration of the rollers are essential for ensuring that each pass of the metal sheet is consistently shaped. Even slight adjustments can have a profound effect on the final product’s quality. Therefore, regular maintenance and recalibration of the rollers should be performed to maintain precision.

5. Operational Factors and Expertise

The expertise of the operators and the conditions under which the metal scaffold decking roll forming machine operates are also crucial for ensuring high precision.

Operator Training

Skilled operators are necessary for monitoring the machine, making real-time adjustments, and ensuring that the process runs smoothly. Training programs for machine operators should emphasize precision control, troubleshooting, and proper maintenance techniques. Shanghai Sihua Precision Machinery Co., Ltd. provides comprehensive training for its customers, ensuring that operators can optimize the performance of the metal scaffold decking roll forming machine.

Environmental Conditions

Environmental factors, such as temperature fluctuations and humidity, can affect both the material properties and the machine’s mechanical performance. Ensuring that the metal scaffold decking roll forming machine operates in a controlled environment is crucial for maintaining precision and reducing the risk of defects in the final product.

6. Maintenance and Regular Inspections

Regular maintenance and inspections are critical to ensuring the continued precision of the metal scaffold decking roll forming machine. A well-maintained machine will operate at peak performance, while neglecting maintenance can lead to wear and tear, which in turn affects the quality of the final product.

Lubrication and Wear Parts

Proper lubrication of moving components such as rollers, shafts, and gears is essential for minimizing friction and preventing premature wear. Regular inspection and replacement of wear parts such as bearings, shafts, and rollers help to maintain the accuracy of the machine over time.

Machine Calibration

Routine calibration of the machine is also necessary to ensure precision. Calibration ensures that the rollers, shafts, and control systems are functioning within the required tolerances. It is recommended that calibration be performed by trained technicians to guarantee accurate results.

7. Case Study: Shanghai Sihua Precision Machinery Co., Ltd.

Shanghai Sihua Precision Machinery Co., Ltd., a leading manufacturer in the roll forming industry, provides cutting-edge metal scaffold decking roll forming machines designed to ensure precision throughout the production process. The company’s equipment is equipped with high-quality components, advanced control systems, and state-of-the-art tooling to guarantee the accuracy of every formed metal sheet.

At the company’s Shanghai headquarters, a dedicated R&D team continuously works on enhancing machine performance, developing new technologies, and optimizing the precision of each machine model. This commitment to innovation has earned Shanghai Sihua Precision Machinery Co., Ltd. numerous patents and industry recognition.

Conclusion

Ensuring the precision of a metal scaffold decking roll forming machine requires a combination of high-quality materials, advanced technology, precise engineering, and skilled operation. By focusing on factors such as component selection, control systems, material quality, and regular maintenance, manufacturers can ensure that their machines deliver accurate and high-quality results.

FAQ

1. What is the maximum length of scaffold decking produced by the metal scaffold decking roll forming machine?

The metal scaffold decking roll forming machine can produce scaffold decking lengths ranging from 0.5 to 6 meters, allowing for versatility in production.

2. How often should the metal scaffold decking roll forming machine be calibrated?

Calibration should be performed regularly, typically every 3-6 months, depending on the machine’s usage and production volume.

3. Can the machine handle varying thicknesses of metal?

Yes, the metal scaffold decking roll forming machine is capable of handling materials with a thickness range of 1 to 2.5 mm.

4. How can I ensure the precision of the metal scaffold decking roll forming machine?

Ensuring precision requires regular maintenance, proper alignment of components, and the use of high-quality materials. Calibration and the implementation of advanced control systems also play a significant role in achieving consistent results.
