UT FUT UDT ceiling T-grid bar roll forming machine

What kind of troubleshooting should operators be aware of when using the UT FUT UDT ceiling T-grid bar roll forming machine?

The UT FUT UDT ceiling T-grid bar roll forming machine is a critical tool for the manufacturing of ceiling grid profiles, including the UT, FUT, and UDT ceiling T-grid types. As with all machinery, the potential for issues during operation exists, and understanding how to troubleshoot these problems is crucial for maintaining production efficiency and machine longevity.

Understanding the UT FUT UDT Ceiling T-grid Bar Roll Forming Machine

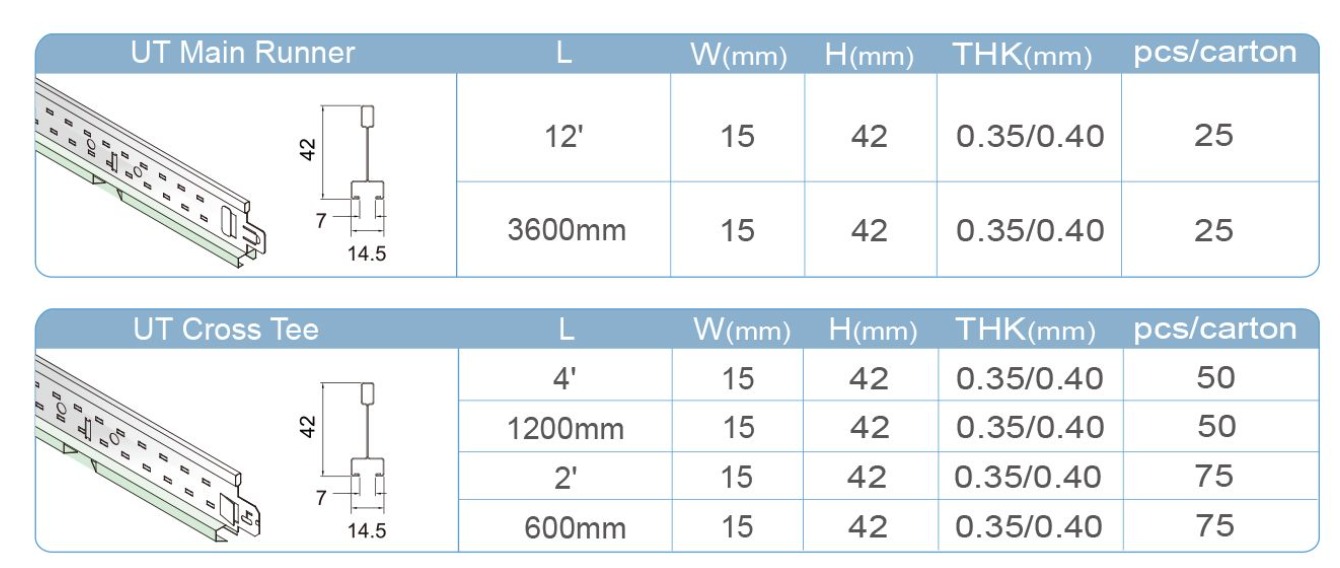

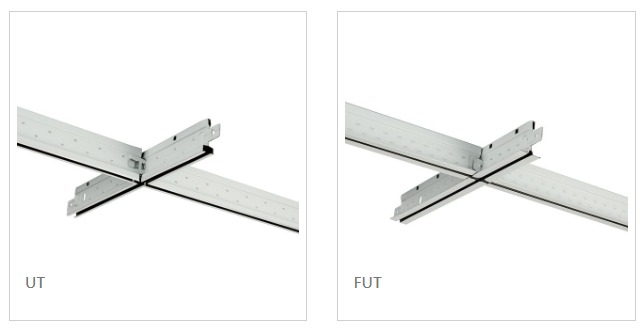

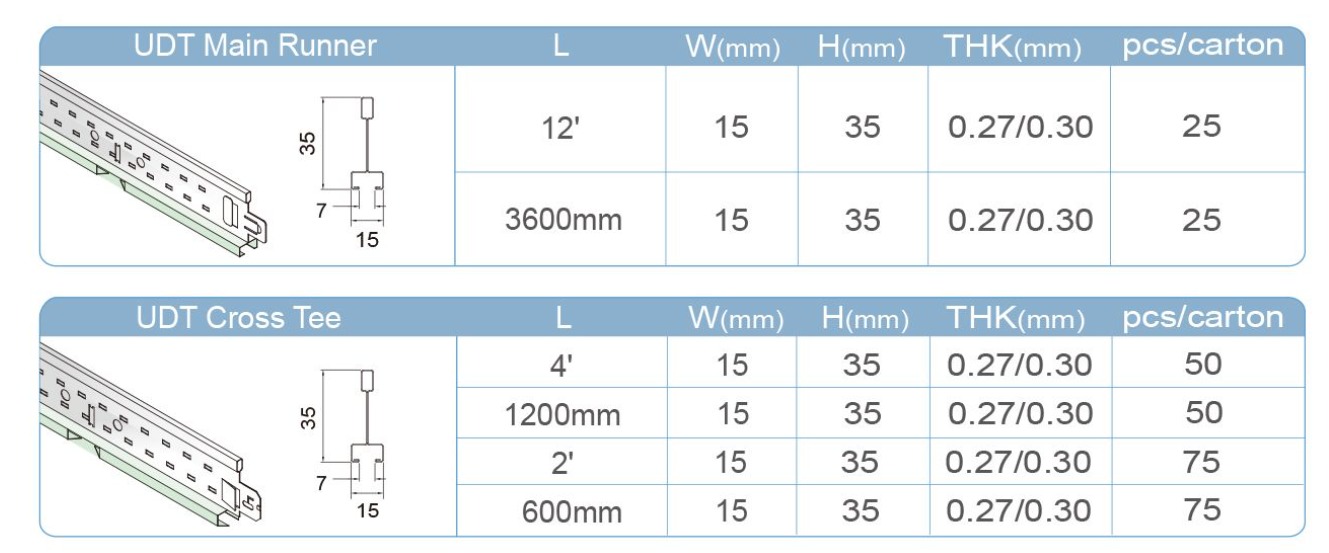

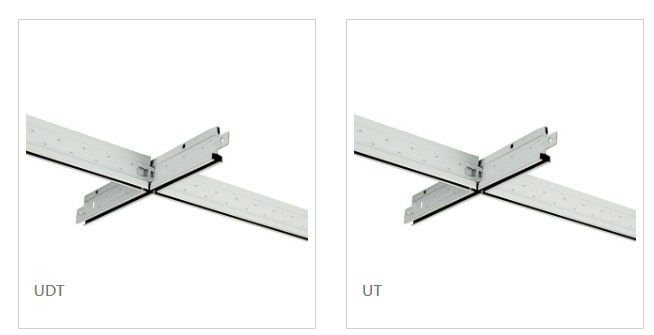

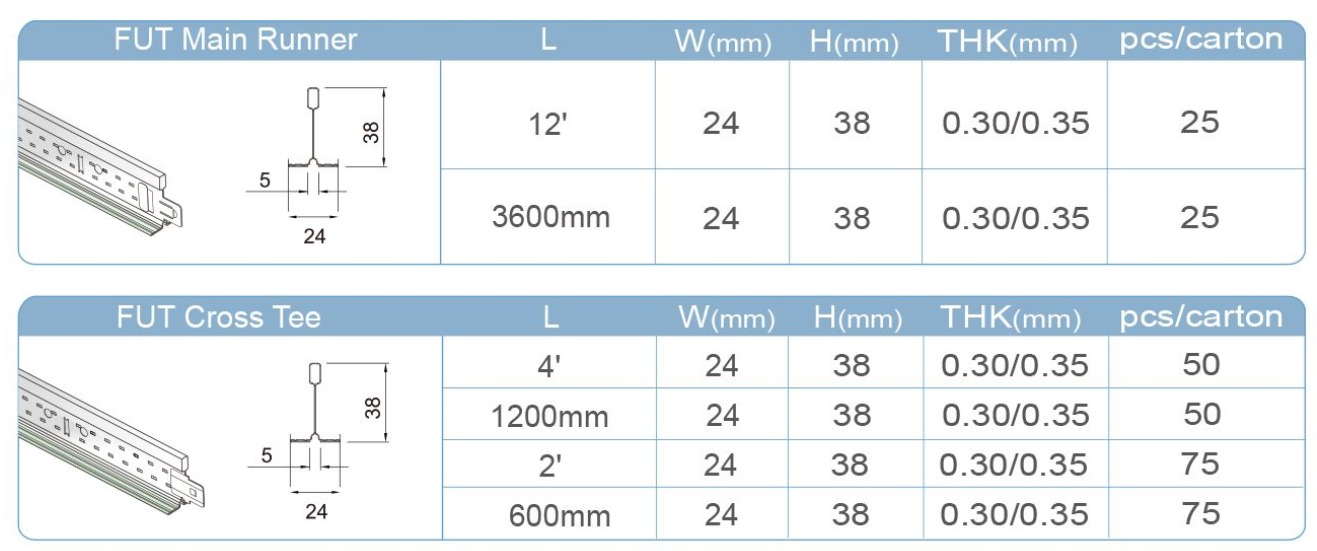

The UT FUT UDT ceiling T-grid bar roll forming machine is designed to produce ceiling grid profiles, such as UT, FUT, and UDT, in both main and cross sections. This functionality allows for high efficiency by enabling the production of both profile types on the same machine. These profiles are integral components in ceiling systems, particularly in the construction and interior design industries.

The key advantage of using the UT FUT UDT ceiling T-grid bar roll forming machine is its ability to produce a wide variety of ceiling grid profiles, making it a highly versatile option for manufacturers. With features such as automatic adjustments for different profile specifications, this machine is ideal for producing ceiling grids in a cost-effective and time-efficient manner.

While the machine is designed to run smoothly under most conditions, there are common issues that operators may face during its use. These can include problems with material feeding, profile distortion, or machine settings, all of which can affect the quality of the final product. In this article, we will explore how to address and troubleshoot these issues to maintain the machine’s optimal performance.

Common Troubleshooting Issues and Solutions

1. Material Feeding Problems

One of the most common issues that operators face with the UT FUT UDT ceiling T-grid bar roll forming machine is improper material feeding. This can cause uneven or distorted profiles, leading to a higher rate of defects in the final product.

Causes:

• Incorrect material alignment: If the material is not properly aligned at the feed entrance, it can cause uneven feeding throughout the process.
• Worn-out feed rollers: Over time, feed rollers can wear out, causing slippage and uneven material feeding.
• Inconsistent material thickness: If the material being fed is not consistent in thickness, it can lead to inconsistent profile shapes.

Solutions:

• Check material alignment: Ensure that the material is properly aligned at the feed entrance to avoid skewing during the forming process.
• Inspect feed rollers: Regularly inspect the feed rollers for signs of wear and replace them when necessary.
• Monitor material thickness: Ensure that the material being used meets the required specifications. Any inconsistencies in thickness should be addressed by sourcing better material or adjusting machine settings.

2. Profile Distortion

Profile distortion is another common issue with the UT FUT UDT ceiling T-grid bar roll forming machine. This occurs when the formed profiles do not meet the specified dimensions, either being too wide, too narrow, or warped.

Causes:

• Improper die setup: If the dies are not correctly aligned or set, they may produce distorted profiles.
• Machine vibration: Excessive vibration during operation can lead to profile distortion.
• Incorrect roller pressure: Too much or too little pressure on the rollers can lead to uneven forming and distortion.

Solutions:

• Check die alignment: Ensure that the dies are properly aligned and set to the correct specifications. Misaligned dies can easily lead to distorted profiles.
• Minimize machine vibration: Ensure that the machine is properly secured and placed on a stable foundation to reduce vibration. If vibration is excessive, check the balance of the machine and perform necessary repairs.
• Adjust roller pressure: Regularly inspect the roller pressure and ensure it is set to the appropriate level for the material being processed.

3. Machine Overheating

Overheating is a common issue with high-speed roll forming machines such as the UT FUT UDT ceiling T-grid bar roll forming machine. If the machine operates at high speeds for extended periods without proper cooling, it can lead to overheating, which may cause permanent damage to the machine components.

Causes:

• Lack of proper lubrication: Insufficient lubrication can cause friction, which leads to overheating.
• Overuse of the machine: Running the machine at maximum capacity for extended periods without breaks can cause it to overheat.
• Inadequate cooling system: If the machine’s cooling system is not functioning correctly, it can fail to dissipate heat effectively.

Solutions:

• Lubricate regularly: Ensure that the machine components are properly lubricated according to the manufacturer’s guidelines. This reduces friction and prevents overheating.
• Allow cooling breaks: Avoid running the machine continuously for long periods. Schedule regular breaks to allow the machine to cool down.
• Inspect the cooling system: Regularly check the cooling system to ensure it is functioning properly. Clean the system as necessary to maintain effective heat dissipation.

4. Electrical Failures

Electrical failures can disrupt the operation of the UT FUT UDT ceiling T-grid bar roll forming machine, causing unexpected downtime.

Causes:

• Power supply issues: Fluctuations in power supply or power surges can cause electrical components to malfunction.
• Loose connections: Over time, electrical connections may loosen, leading to poor electrical contact and system failures.
• Faulty components: Electrical components such as motors, sensors, or control panels may fail due to wear and tear.

Solutions:

• Inspect the power supply: Ensure that the power supply is stable and meets the required specifications for the machine. Use a voltage regulator if necessary.
• Check electrical connections: Regularly inspect and tighten all electrical connections to prevent malfunctions.
• Replace faulty components: If electrical components such as motors or sensors show signs of failure, replace them promptly to avoid further issues.

Preventive Maintenance for the UT FUT UDT Ceiling T-grid Bar Roll Forming Machine

Preventive maintenance is critical to ensure the UT FUT UDT ceiling T-grid bar roll forming machine operates smoothly and efficiently. Implementing a regular maintenance schedule can prevent many of the issues mentioned above.

1. Daily Maintenance

• Check material feed alignment: Ensure that the material is properly aligned at the entrance and that the feed rollers are functioning correctly.
• Inspect rollers: Examine the rollers for signs of wear and tear. Replace them as necessary.
• Monitor temperature: Keep an eye on the machine’s temperature to ensure it is not overheating.

2. Weekly Maintenance

• Lubricate moving parts: Apply lubricant to all moving parts, including rollers, shafts, and bearings.
• Check for vibrations: Ensure that the machine is operating without excessive vibrations.

3. Monthly Maintenance

• Clean cooling system: Clean the cooling system to ensure it is functioning properly and preventing overheating.
• Inspect electrical system: Check all electrical connections and components for signs of wear or damage.

Integration of Shanghai Sihua Precision Machinery Co., Ltd.'s Expertise

Shanghai Sihua Precision Machinery Co., Ltd. is a professional manufacturer specializing in the research and development of automatic high-speed flying shear roll forming machines. As an innovative leader in the roll forming industry, SIHUA continuously enhances the design and functionality of its machines, including the UT FUT UDT ceiling T-grid bar roll forming machine.

SIHUA’s R&D team leverages state-of-the-art tools like M COPRA software to design and analyze roller profiles, ensuring precision in every component of the UT FUT UDT ceiling T-grid bar roll forming machine. With a strong emphasis on precision manufacturing, SIHUA’s machines are engineered to offer long-term reliability and high production efficiency, minimizing the need for frequent troubleshooting.

FAQ

1. What is the maximum production speed of the UT FUT UDT ceiling T-grid bar roll forming machine?

The production speed can vary based on material thickness and profile type. However, the machine is designed to operate at high speeds while maintaining precision and quality.

2. How can I prevent material feeding issues with the UT FUT UDT ceiling T-grid bar roll forming machine?

Proper alignment of the material at the entrance is crucial. Regular inspection of the feed rollers and ensuring consistent material thickness can help minimize feeding issues.

3. What should I do if the profiles produced by the machine are distorted?

First, check the alignment of the dies and adjust the roller pressure. Reducing machine vibrations and ensuring proper die setup can also help prevent profile distortion.

4. How often should the cooling system be cleaned?

It is recommended to clean the cooling system monthly to ensure it is functioning effectively and preventing overheating.
