Quick Change Cassette Scaffold 190 & 320 Plank Roll Forming Machine with 3-in-1 Decoiler Straightener Feeder – Technical Specifications

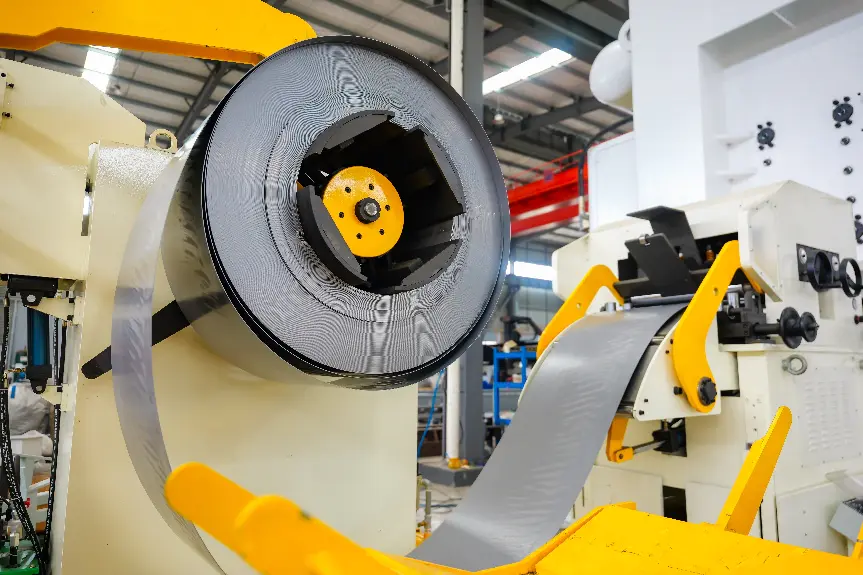

Decoiler System

• 3-in-1 Decoiler Straightener Feeder
• Capacity: 5 tons
• hydraulic coil mandrel expansion,
• servo feeding & straightening.

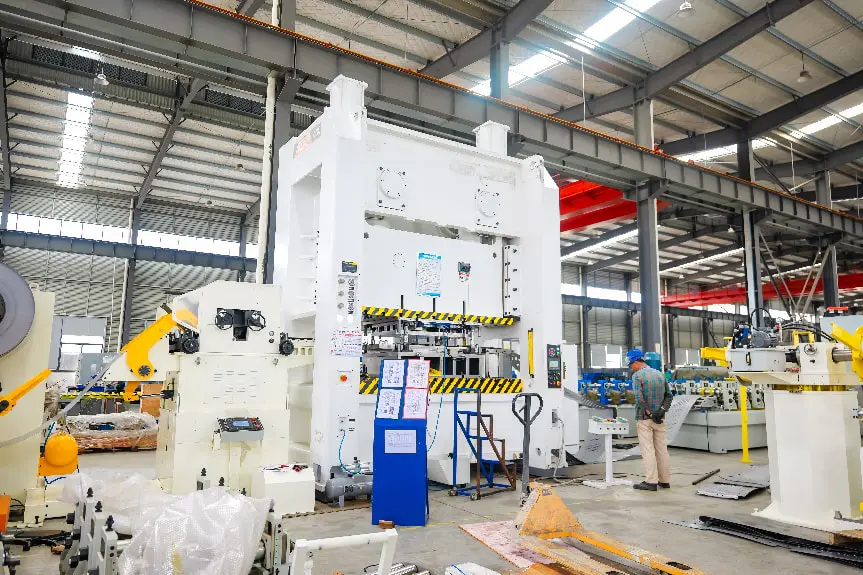

Punching machine

• 400 Ton Power Press

• Capacity: 400 tons
• Heavy-duty welded frame, high rigidity
• Hydraulic overload protection device
• Equipped with safety guard & control operation panel

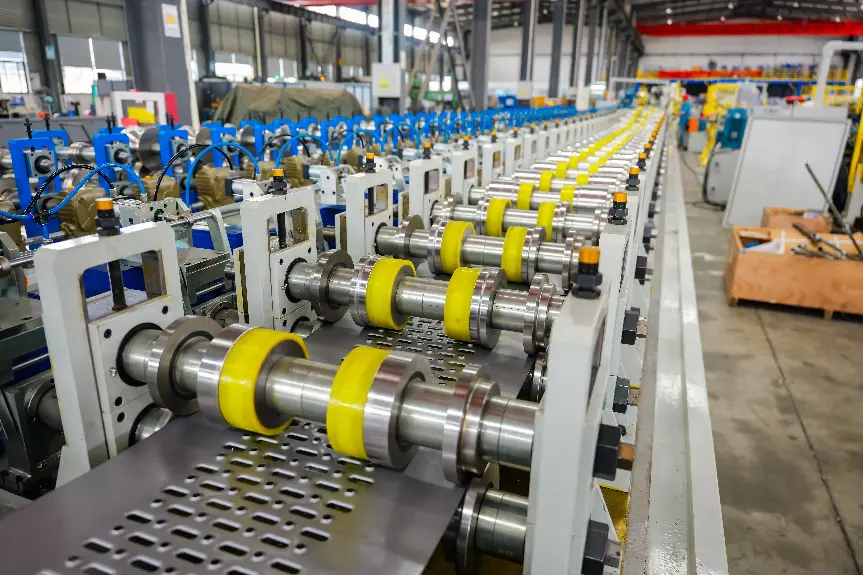

Roll Forming System

• Quick Change Cassette Scaffold Plank Roll Former
• Profile: 190mm & 320mm scaffolding plank
• Changeover time: 15–30 minutes
• Main motor driving

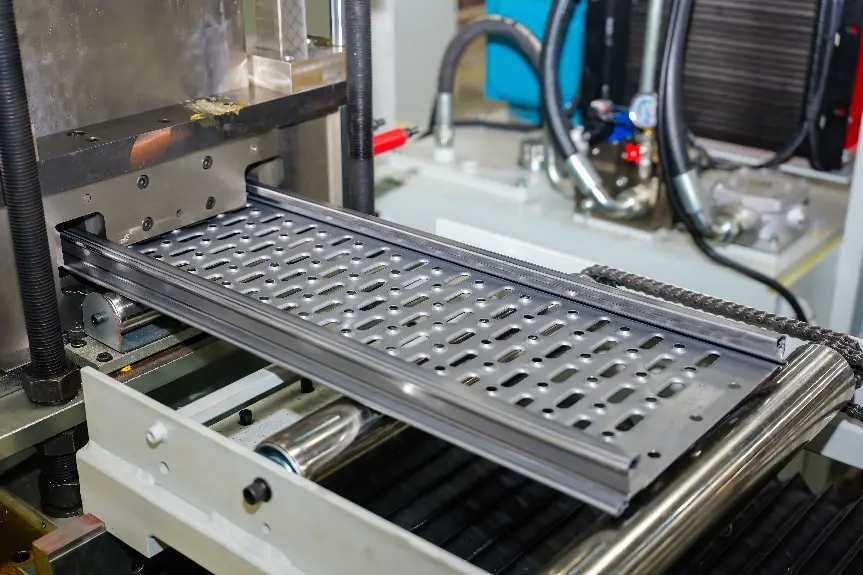

 Follow Cutting System

• Follow-up Cutting Table
• Cutting method: Blade cutting
• Line speed: 45–50 m/min
• Hydraulic driven cutting unit

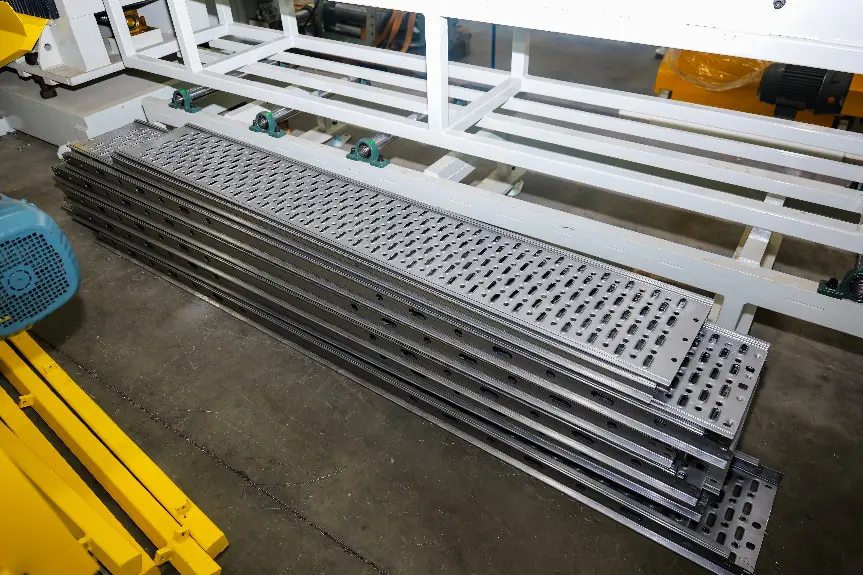

Simple Packing Table

• Simple Packing Table

• Manual stacking for finished planks
• Convenient for bundling & packing
• Sturdy steel frame structure

Key Features:

• High dimensional accuracy of formed scaffold plank/deck
• Hard chrome plated forming rollers, wear-resistant and smooth product surface
• Gearbox independent drive, low vibration and long service life
• Would you like additional details on motor power, material thickness range, or customization options
