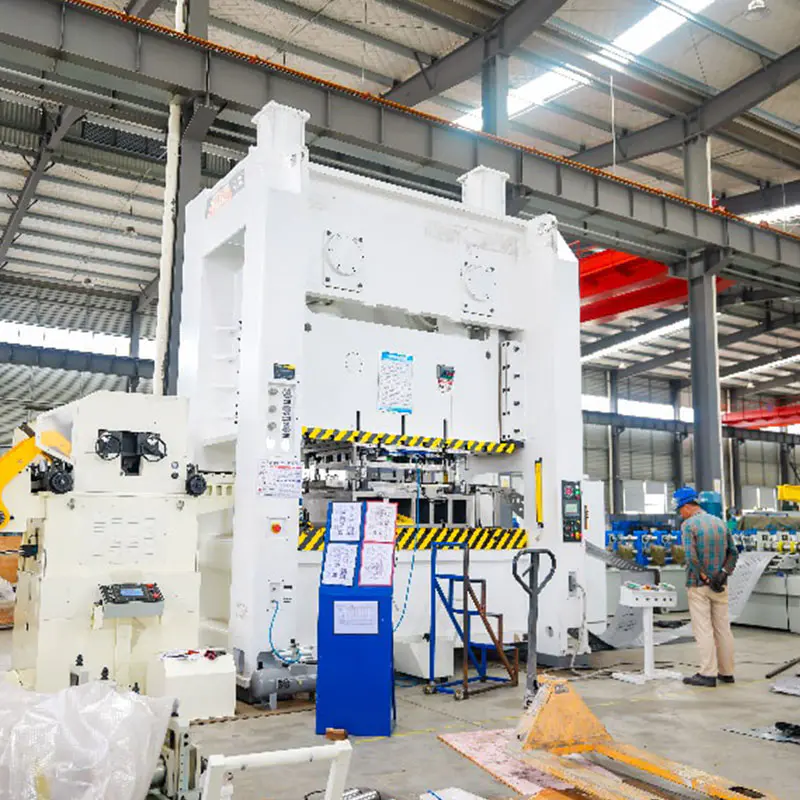

Deck Clip Punching Line – Technical Specifications

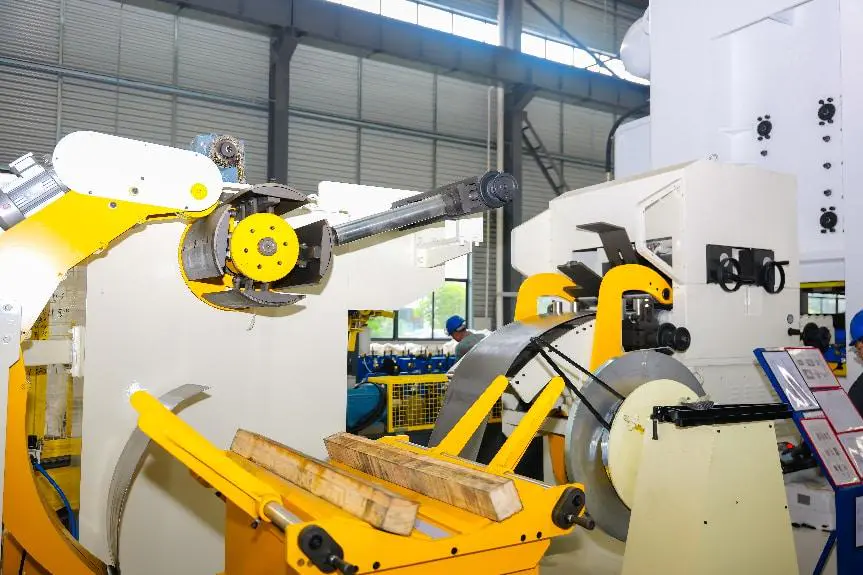

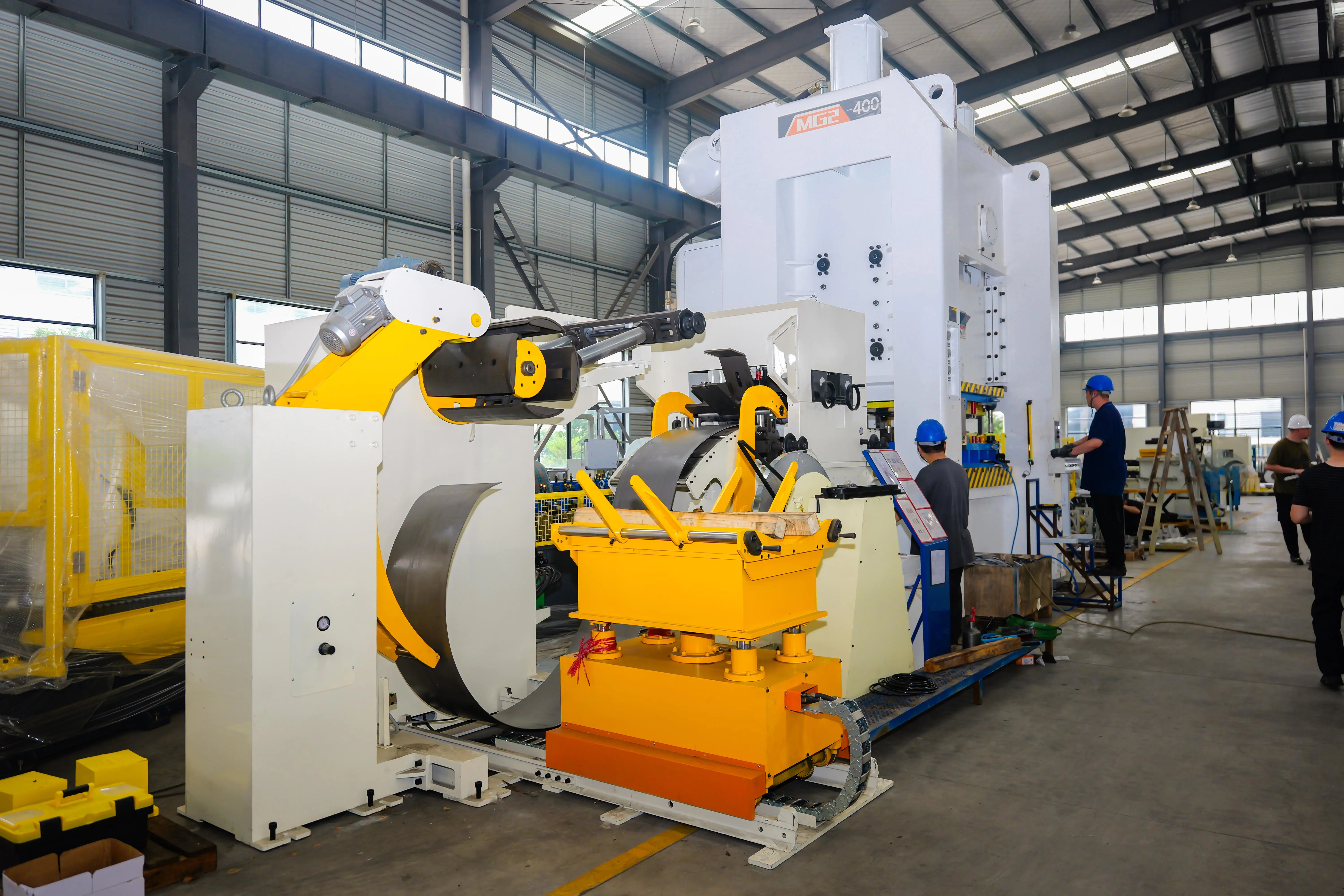

3-in-1 Decoiler Straightener Feeder System ·

• 3-in-1 Decoiler Straightener Feeder

• capacity: 5 tons
• Hydraulic mandrel expansion
• Servo-driven straightening & feeding
• Synchronized signal with punching press

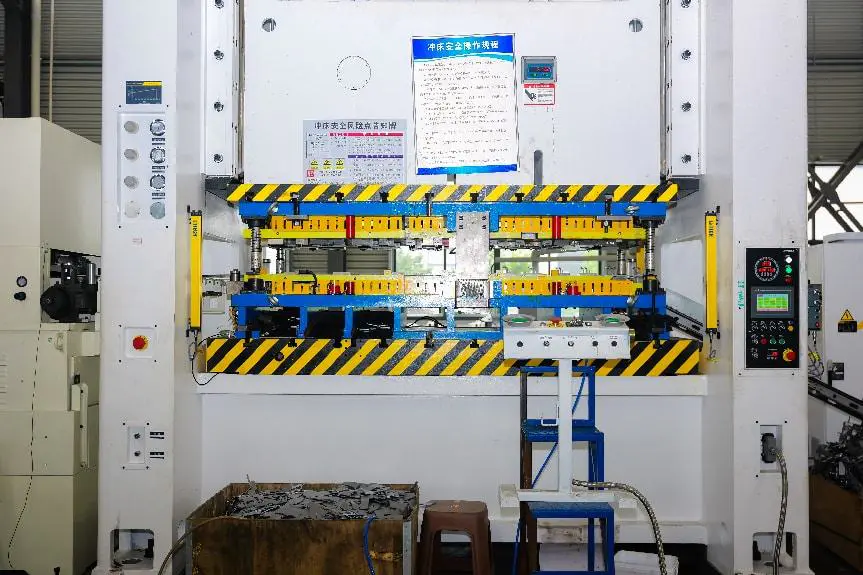

Deck Clip Punching Press System

• High-speed punching & forming press for deck clip
• Punching-forming force: 400Ton
• Quick-change punching-forming die for multiple deck clip profiles
• Hydraulic overload protection device

Hydraulic System

• Total power: 30 kW

Control System ·

• PLC & HMI: Siemens
• o Servo position control
• o CE safety protection system

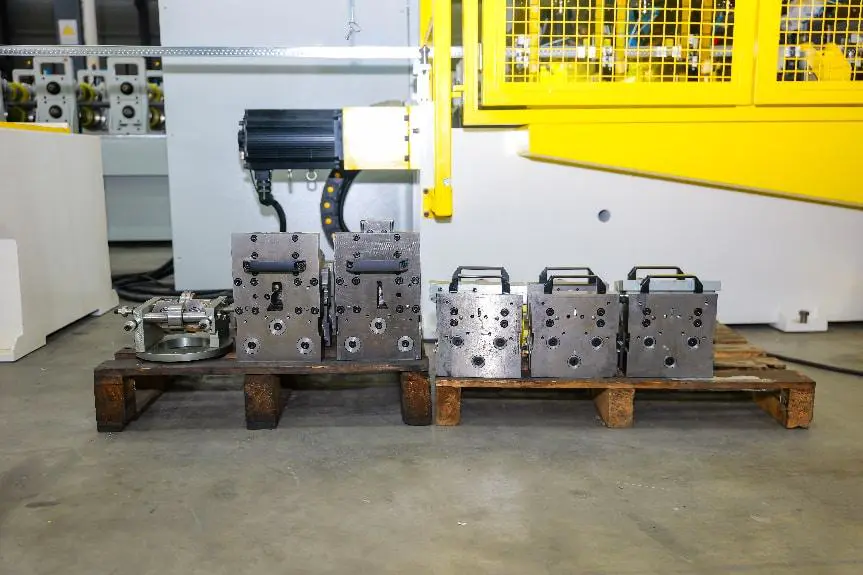

Die & Die Set Frame System·

• • • Punching-forming die set frame o High-strength cast steel die frame
    • Quick-release clamping structure for fast die replacement
    • Precision guide pillar & guide bushing for high punching accuracy o Suitable for different deck clip forming dies

Key Features

• High-speed continuous punching-forming with high precision
• Quick-change die design for different deck clip profiles
• Siemens PLC control for stable & reliable operation
• Suitable for multiple deck clip profiles

This machine is ideal for scaffolding connector manufacturers looking for high-volume, automatic punching-forming production of scaffolding connection parts.

Would you like additional details on motor power, material thickness range, or customization options
