Scaffold Deck & Plank Quick Change Roll Forming Machine – Technical Specifications

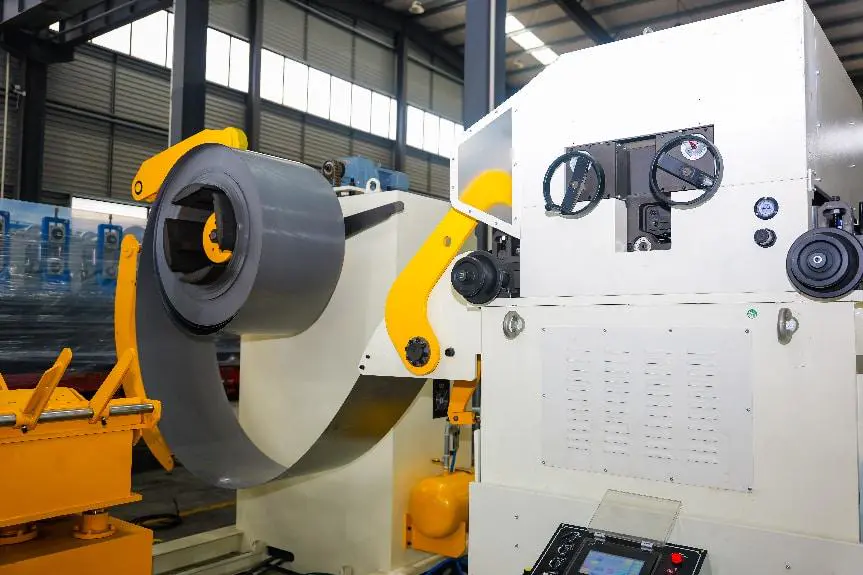

Decoiler System

• COMBI 3/1 decoiler lever and feeder

• Capacity: 3-8 tons
• high feeding accuracy, fully automatic operation,
• widely used for metal coil stamping

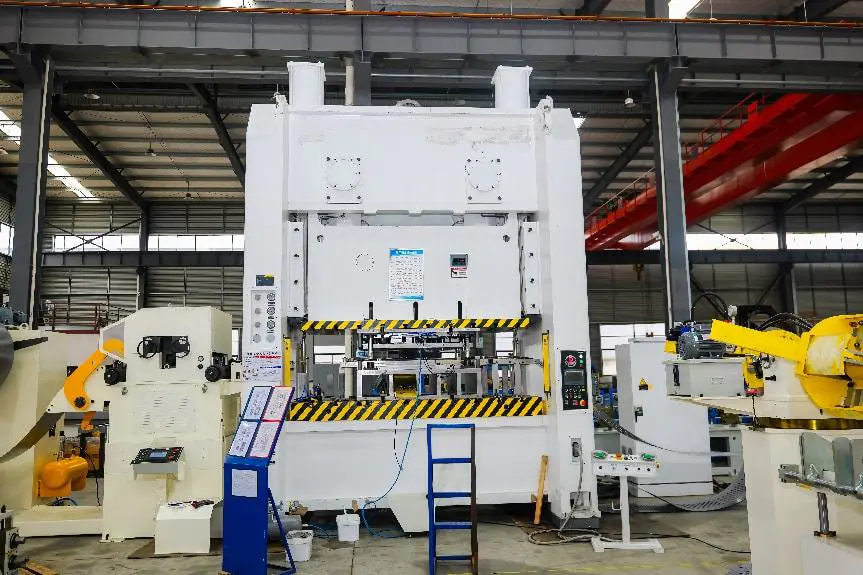

Punch Press Unit

• Punching force: 400 Ton
• Eight-face rectangular slide guide for high precision
• Pneumatic friction clutch & brake
• Hydraulic overload protection device
• Synchronized signal linkage with roll forming main machine
• Multi-holes simultaneous punching for scaffold connection holes
• Safety protective fence conforming to CE standard

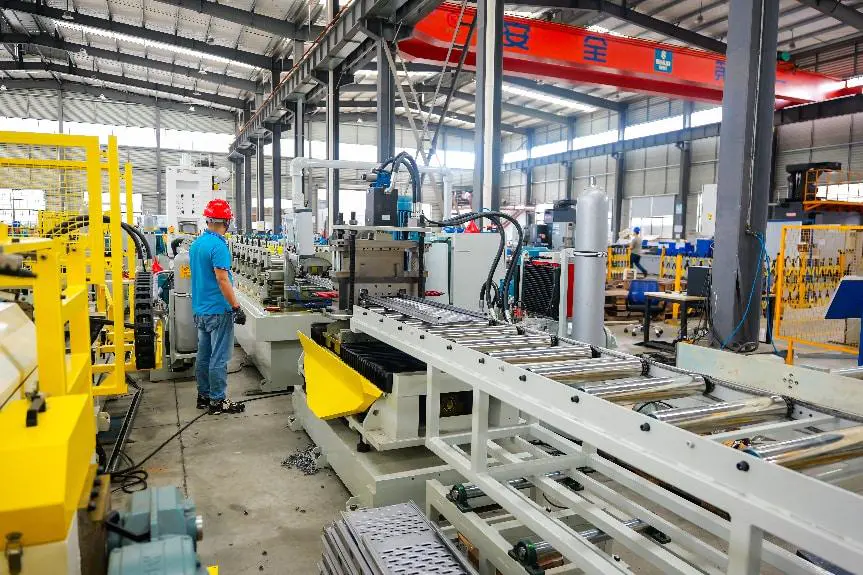

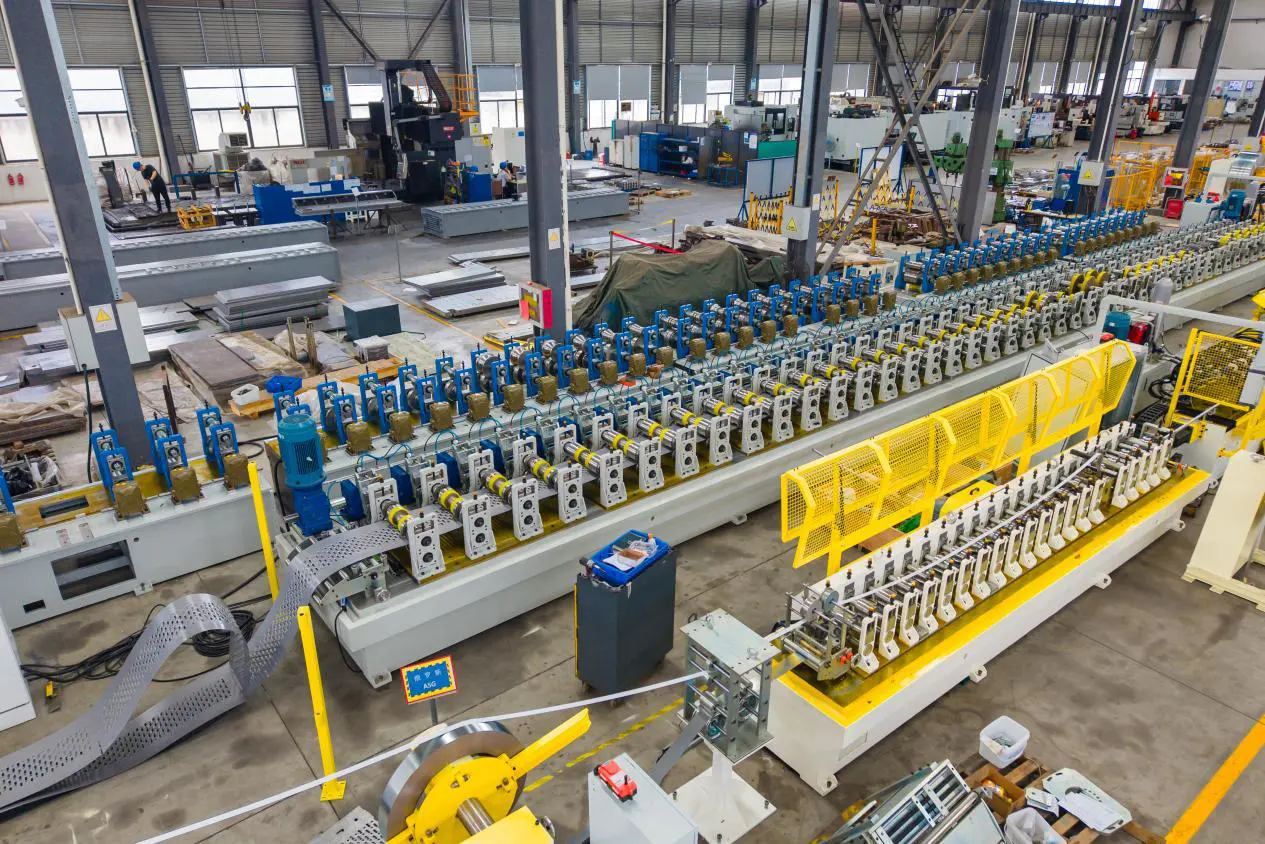

Scaffold Roll Forming Machine

3 Sets of Combi Rollers for forming:

• Scaffold Plank Profile
• Ledger Profile
• Standard Profile
• 1 Set of deck straightening roller quick-change unit
• 10 sections of sheet quick-change roll units
• Fast profile switching without heavy disassembly
• Precision roll forming to guarantee flatness and profile dimension

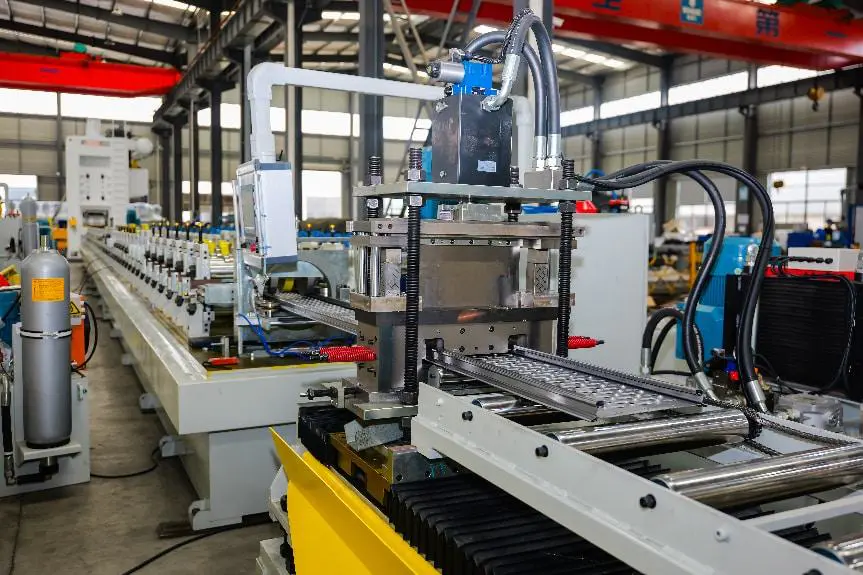

High-Speed Shear, Punching, and Cutting System

• Cutting Speed: 30 m/min
• Cutting Mode: Blade

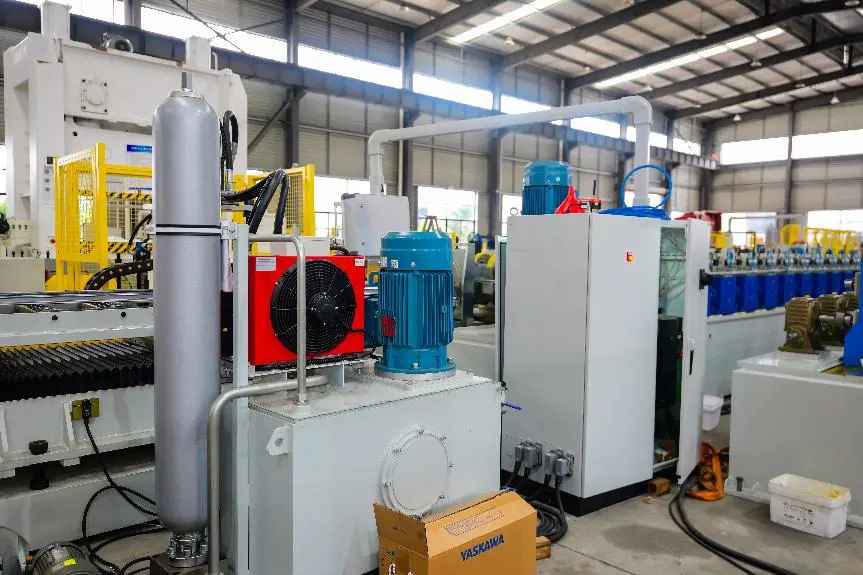

Hydraulic System（18.5kW Hydraulic Power Unit）

• Power:5 kW

 Control System（Electrical Control System to CE Standard）

• Italian Controller System
• HMI and PLC:Siemens
• CE safety system

Package System

Material receiving table

• Fixed slide plate
• 2 pieces supporting frames

Key Features

• Quick change roller system, easy switch between scaffold deck and plank profiles
• High-speed production, 400T closed punch press for precise multi-hole punching
• Synchronized linkage between punch press & roll former for stable running
• Siemens PLC control for stable & reliable operation

This machine is ideal for drywall profile manufacturers looking for automated, high-speed production with integrated packaging.

Would you like additional details on motor power, material thickness range, or customization options
