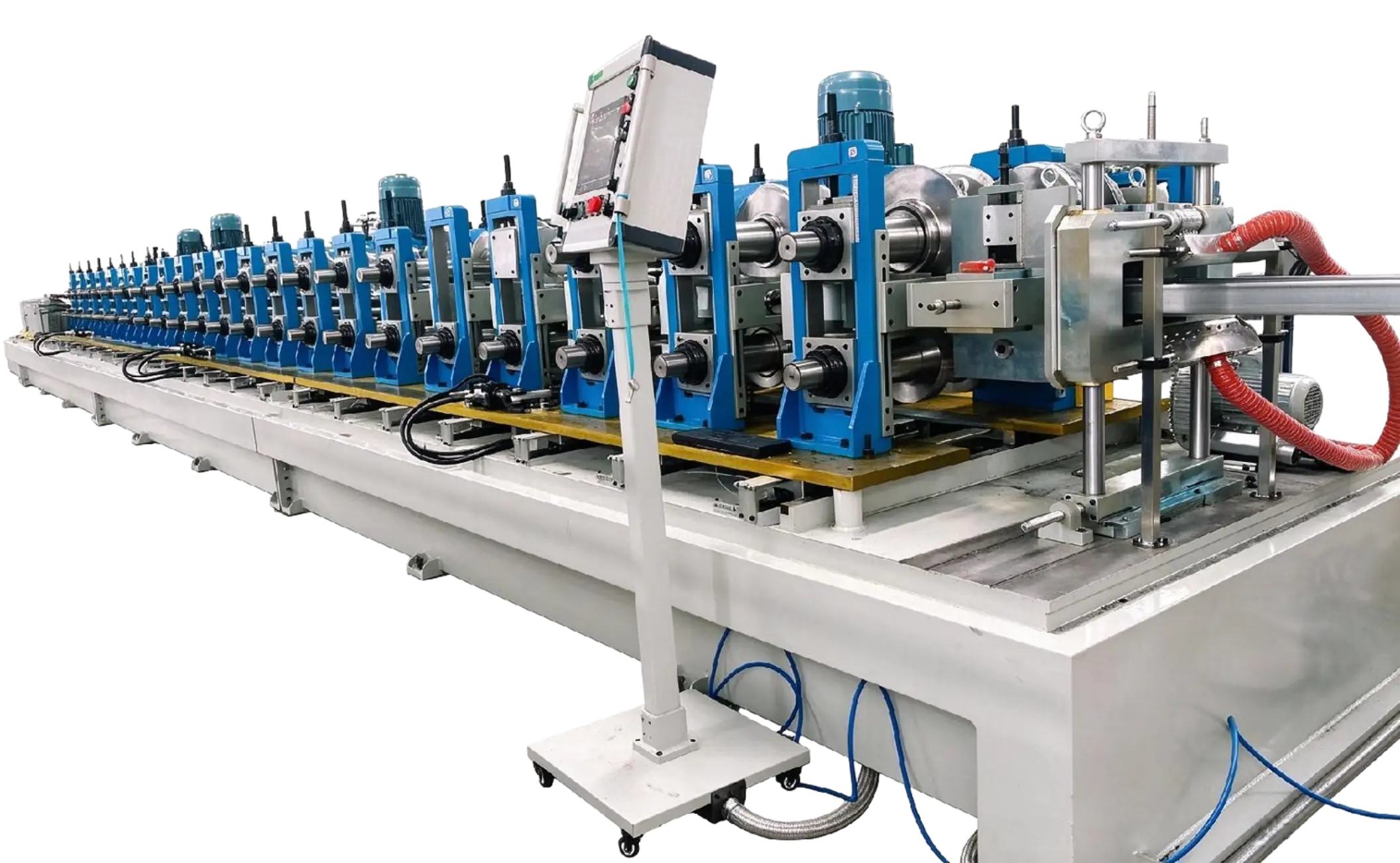

Cable tray roll forming machine

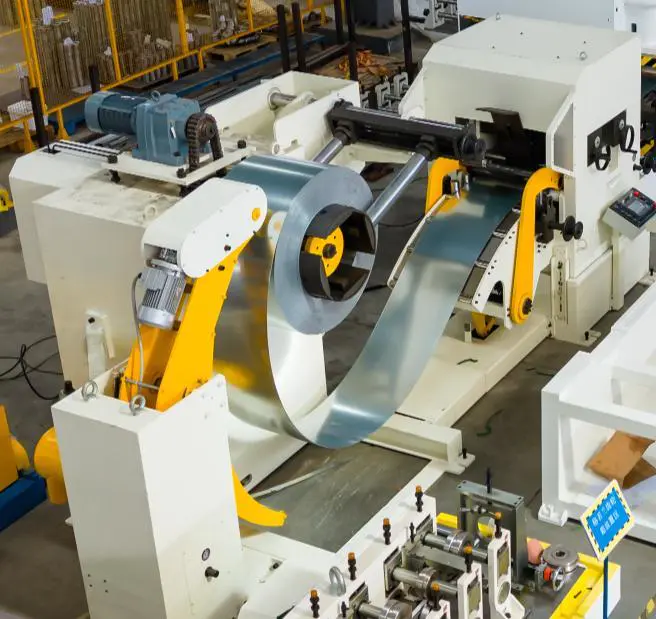

Decoiler System

• • Double-Head Rotary Hydraulic Decoiler
  • Capacity: 3 tons × 2 pieces
  • Maximum material width ≤ 800 mm
  • Hydraulic expansion coil
  • Hydraulic expansion coil o Motor rotary exchange for change-over coiler operation

 Cable tray roll forming machine

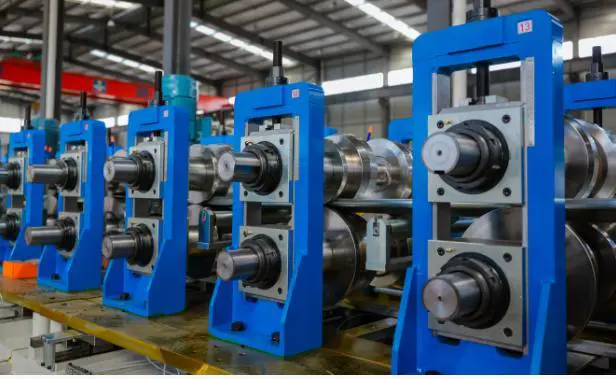

• • Roller Stations:8 steps
  • Working Speed:10-25m/min
  • Equipped with a liquid cooling system

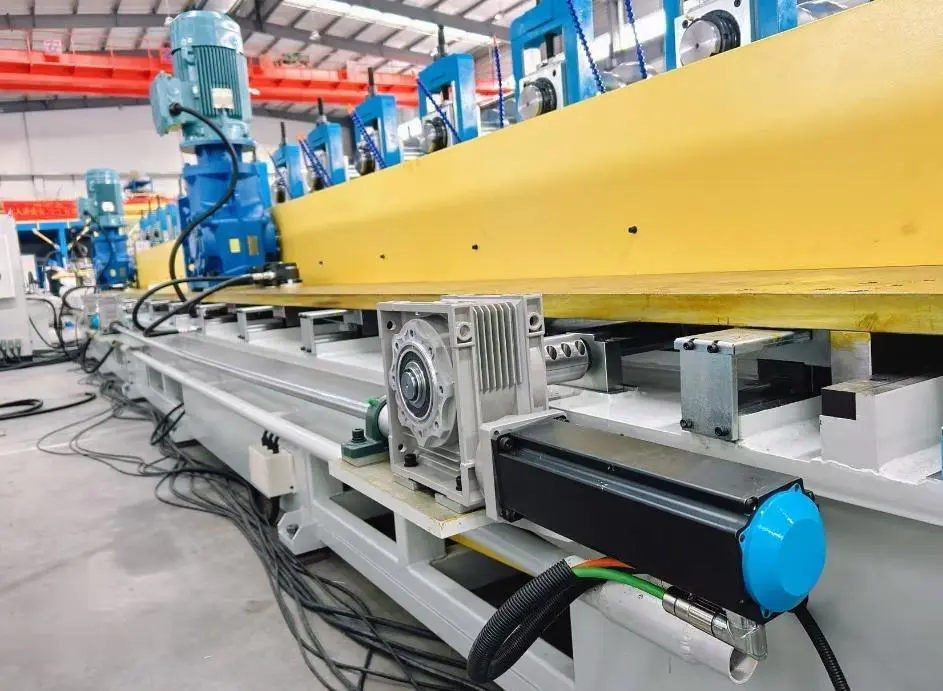

Servo automatic width adjustment unit

• • Automatic width adjustment
  • o Automatic width range: 50-400mm
  • o Automatic height range:50-150mm

Hydraulic Flying Cut-off Machine

• Cutting method: Hydraulic blade cutting
• Equipped with fixed slide plate and supporting frames

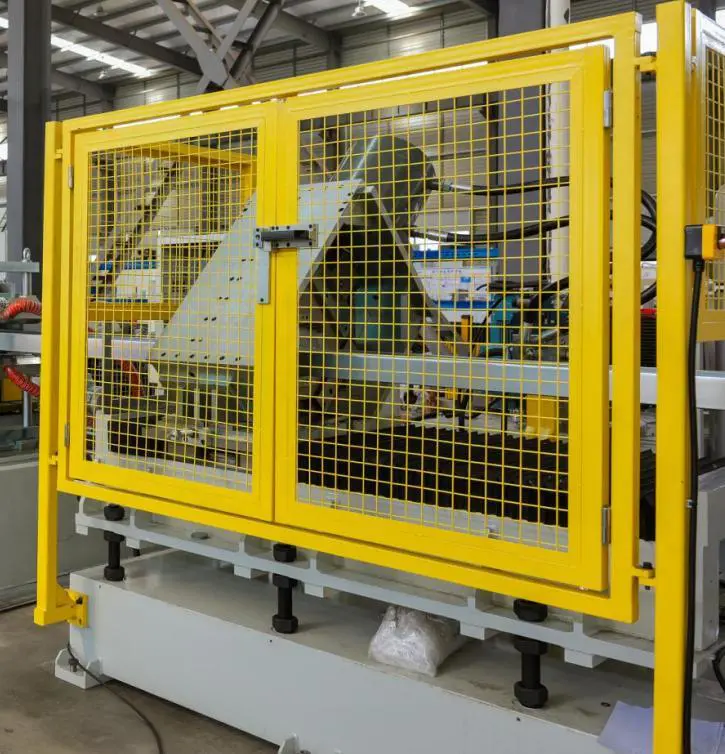

• Equipped with safety guard net

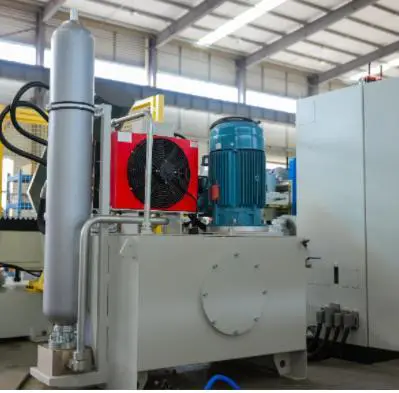

Hydraulic System

o Total power: 37 kW

o Control System

o CE safety protection system

o Variable Frequency Drive: 60 kW

Key Features:

• Quick-change cassette design for multiple cable tray sizes
• Double-head rotary hydraulic decoiler for non-stop coil changeover
• Heavy-duty machine frame suitable for thick-gauge steel
• Suitable for multiple cable tray profiles (perforated & solid bottom type)

This machine is ideal for cable tray manufacturers looking for automated, high-volume production of various cable tray products.
