Strut cassette roll forming machine

What are the most common issues with Strut cassette roll forming machines and how can they be fixed?

The strut cassette roll forming machine is a highly specialized piece of equipment used for creating metal profiles such as strut channels, which are essential in various industries, especially construction and manufacturing. Like all complex machines, the strut cassette roll forming machine faces certain operational challenges. Understanding these common issues and their solutions is crucial for ensuring optimal performance and minimizing downtime.

1. Machine Misalignment

Overview

One of the most common issues encountered in strut cassette roll forming machines is misalignment during operation. Misalignment occurs when the rollers, shafts, or material feed mechanisms are not properly aligned. This can result in uneven product profiles, poor-quality production, and even damage to the equipment.

Causes of Misalignment

Misalignment can occur for several reasons, including:

• Improper installation of the machine components.
• Wear and tear of rollers or shafts over time.
• Incorrect setup of the material guide and feeder system.

Solution

To fix misalignment issues, it is essential to:

• Regularly inspect the alignment of the machine components.
• Tighten loose parts and ensure all components are properly fitted.
• Replace worn-out components like rollers or shafts promptly.
• Use proper installation practices and follow the manufacturer’s guidelines to set up the machine.

At Shanghai Sihua Precision Machinery Co., Ltd., we prioritize precision manufacturing and design to avoid such misalignment issues, utilizing advanced software tools to ensure all components are designed with maximum alignment accuracy.

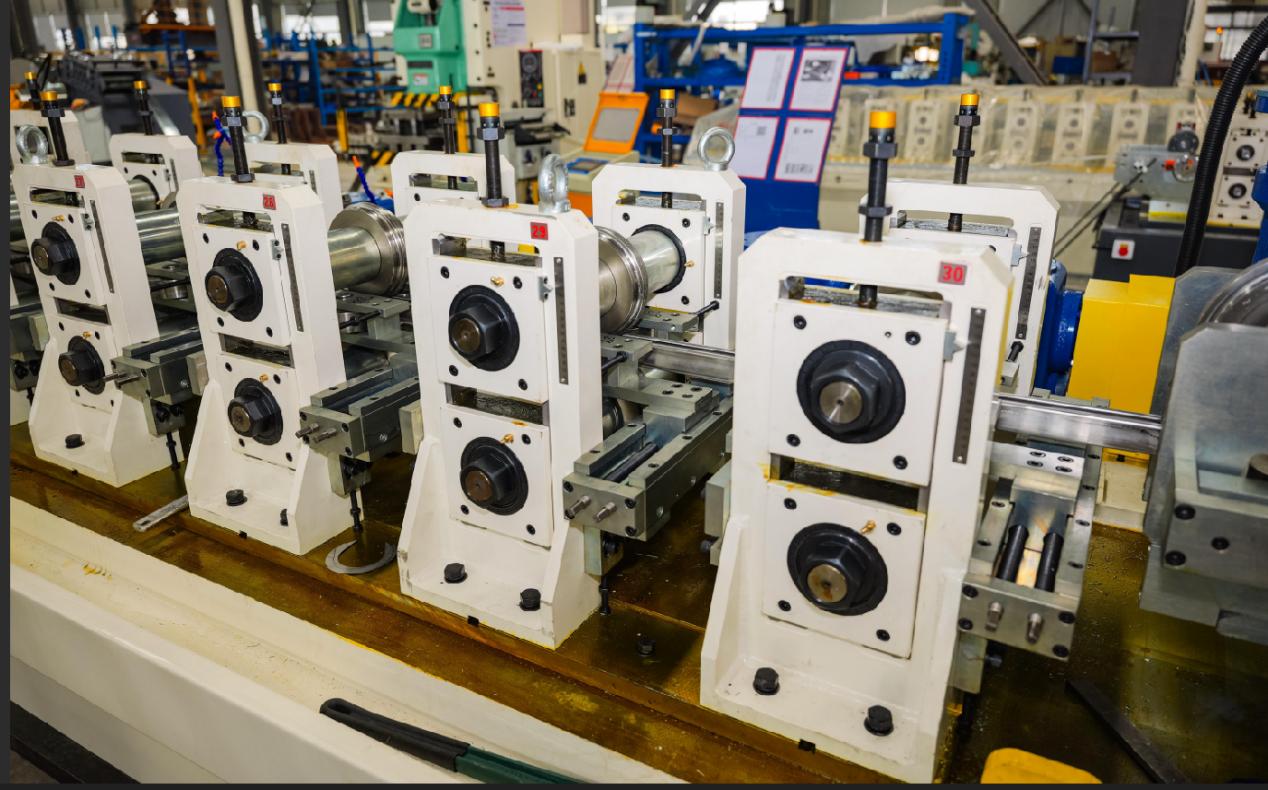

2. Roller Wear and Tear

Overview

Rollers in strut cassette roll forming machines undergo constant pressure during operation. Over time, the repeated force can cause the rollers to wear out, leading to decreased efficiency, inconsistent product quality, and even mechanical failures.

Causes of Roller Wear

• Excessive load on the rollers.
• Inadequate lubrication leading to friction.
• Prolonged use without maintenance or replacement.
• Improper material handling, which may cause damage to the rollers.

Solution

To mitigate roller wear:

• Regularly inspect and lubricate rollers to ensure smooth operation.
• Replace worn rollers promptly to maintain product quality.
• Implement proper material handling practices to avoid unnecessary strain on the rollers.
• At Shanghai Sihua Precision Machinery Co., Ltd., we design our machines with high-strength materials and advanced roller designs to extend their lifespan and improve performance.

3. Inconsistent Product Quality

Overview

Another frequent issue with strut cassette roll forming machines is inconsistent product quality. This can manifest in various forms, such as variations in profile size, shape, or surface finish. Such inconsistencies can lead to product rejections and increased scrap rates.

Causes of Inconsistent Product Quality

• Improper machine calibration, causing inaccurate dimensions.
• Poor material quality or variations in raw material thickness.
• Inadequate roller setup for specific profiles.
• Dirty or worn components, such as rollers and punch press machines.

Solution

To ensure consistent product quality:

• Calibrate the machine regularly to ensure the correct dimensions and settings.
• Use high-quality materials with consistent thickness to avoid discrepancies.

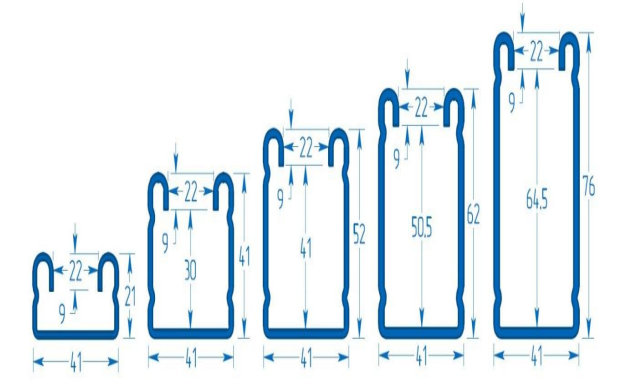

• Ensure proper roller setup for different profile types, as specified for profiles like 41×21, 41×41, 41×52, 41×62, and 41×76.
• At Shanghai Sihua Precision Machinery Co., Ltd., we emphasize precision manufacturing and testing to guarantee that our strut cassette roll forming machines deliver high-quality products consistently.

4. Overheating of the Machine

Overview

Overheating is another common issue with strut cassette roll forming machines. Overheating can lead to the degradation of machine components, especially those that rely on high-speed operations such as the feeder, punch press, and shear-off machines.

Causes of Overheating

• Inadequate cooling or ventilation in the machine.
• Extended operation without breaks or cooling periods.
• Excessive load on the machine components, leading to higher friction and heat generation.

Solution

To prevent overheating:

• Ensure the machine is equipped with proper cooling systems such as fans or air conditioning.
• Operate the machine in shorter intervals, allowing it to cool down between runs.
• Maintain proper ventilation around the machine to dissipate heat effectively.
• Regularly check and clean cooling systems to prevent blockages.

By designing strut cassette roll forming machines with efficient cooling systems, such as those used in our products at Shanghai Sihua Precision Machinery Co., Ltd., we ensure that overheating is minimized, enhancing performance and longevity.

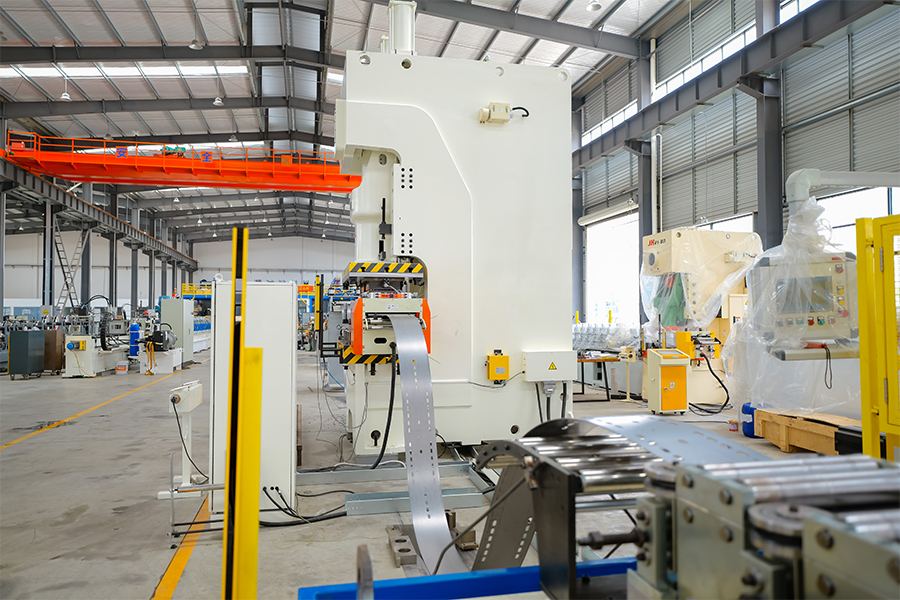

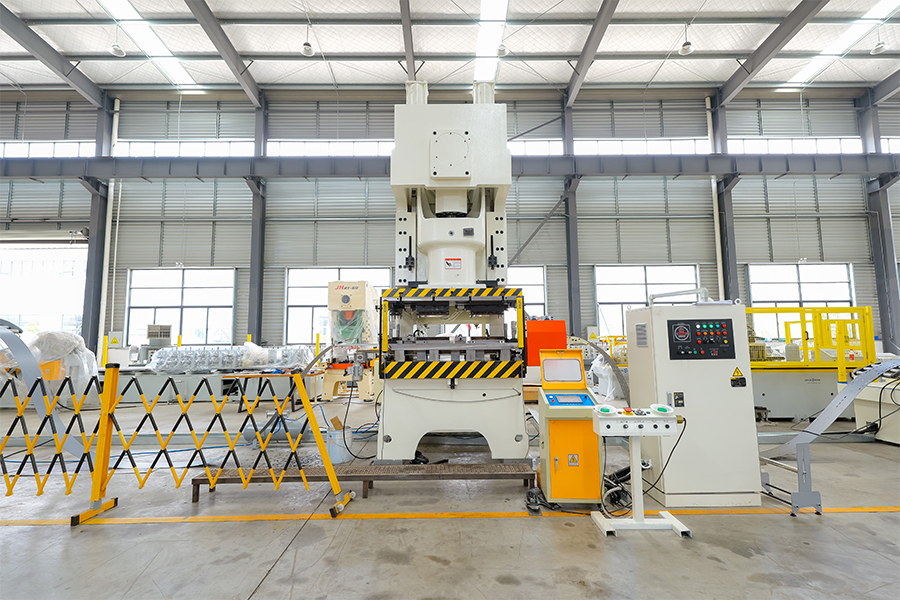

5. Punch Press Failures

Overview

The punch press, a key component in many strut cassette roll forming machines, is often prone to failure if not properly maintained. Punch press failures can cause interruptions in production and lead to expensive repairs.

Causes of Punch Press Failures

• Lack of maintenance and lubrication on moving parts.
• Inconsistent alignment between the punch press and the material.
• Overloading the punch press with materials that are too thick or heavy.

Solution

To avoid punch press failures:

• Lubricate and maintain the punch press regularly to ensure smooth operation.
• Regularly check the alignment of the punch press with the material feed.
• Ensure that the material used is within the recommended thickness and strength specifications.
• At Shanghai Sihua Precision Machinery Co., Ltd., we provide optional upgrades, such as the Yadon/Yangli 125-ton press machine, to enhance press efficiency and reliability.

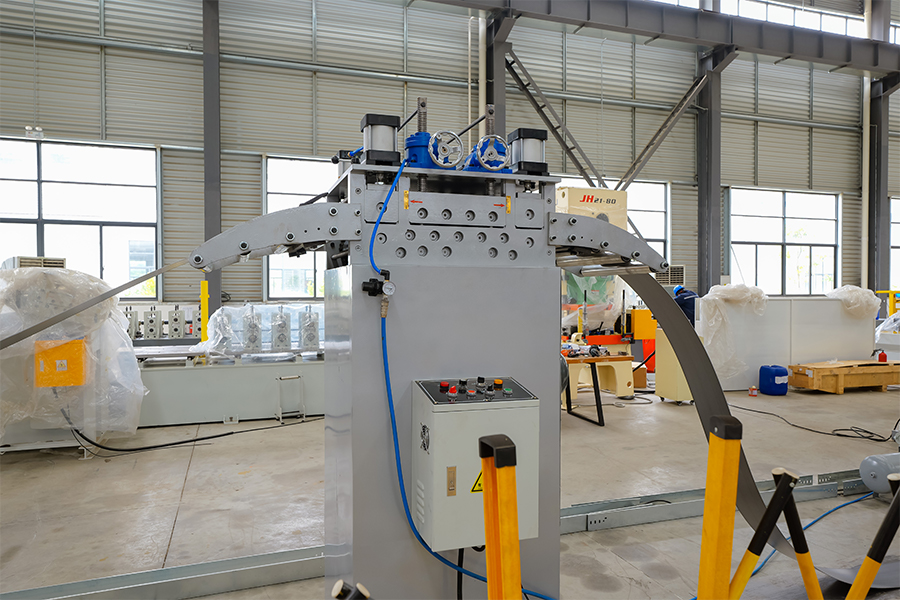

6. Material Feed Issues

Overview

The material feed system plays a crucial role in the overall efficiency of the strut cassette roll forming machine. Feed-related issues can lead to improper material entry, causing misalignment, uneven production, or even jamming.

Causes of Material Feed Issues

• Inconsistent material thickness or quality.
• Poor alignment between the feeder and roll forming section.
• Clogging or blockages in the feeder system.
• Improper setup or calibration of the material guide.

Solution

To resolve material feed issues:

• Regularly inspect the material feed system for blockages or wear.
• Calibrate the material guide and ensure it aligns properly with the roll forming machine.
• Use high-quality materials that meet the machine’s specifications to ensure smooth feeding.
• Shanghai Sihua Precision Machinery Co., Ltd. designs easy-to-maintain feeders, ensuring smoother operation and less downtime.

7. Electrical System Failures

Overview

Electrical system failures, including issues with wiring, sensors, or control systems, can severely disrupt the operation of strut cassette roll forming machines.

Causes of Electrical Failures

• Loose or damaged wiring.
• Inaccurate sensor readings or sensor malfunctions.
• Power surges or interruptions in the electrical supply.

Solution

To prevent electrical failures:

• Inspect and maintain wiring regularly to ensure no loose connections.
• Calibrate sensors and replace malfunctioning sensors promptly.
• Use surge protectors and stabilizers to prevent power fluctuations.
• At Shanghai Sihua Precision Machinery Co., Ltd., we ensure that our machines are equipped with robust electrical systems designed to withstand power surges and other electrical issues.

Conclusion

The strut cassette roll forming machine is an essential piece of machinery in many manufacturing and construction applications. While these machines are designed for high performance, they are not immune to common operational challenges such as misalignment, roller wear, inconsistent product quality, and punch press failures. By understanding these issues and applying the appropriate solutions, operators can significantly improve the machine’s efficiency, quality, and longevity.

At Shanghai Sihua Precision Machinery Co., Ltd., we are committed to providing high-quality, innovative machines that are built to withstand these challenges. Our team of experts continues to push the boundaries of technology to ensure that our machines deliver maximum performance.

FAQ

1. How often should I maintain my strut cassette roll forming machine?

It is recommended to perform regular maintenance every 3-6 months, depending on the frequency of machine use.

2. What should I do if the rollers in the strut cassette roll forming machine are worn out?

Replace the rollers promptly and ensure that they are properly lubricated and aligned to maintain optimal performance.

3. How can I improve the alignment of my strut cassette roll forming machine?

Regularly inspect and calibrate the machine’s components, including rollers, shafts, and material guides, to ensure proper alignment.

4. What can I do if my machine is overheating?

Ensure the cooling system is functioning properly, operate the machine in shorter intervals, and maintain proper ventilation around the machine.

5. Can I use the strut cassette roll forming machine for different profile types?

Yes, the strut cassette roll forming machine can accommodate different profile types with the use of interchangeable cassettes, making it versatile for various applications.
